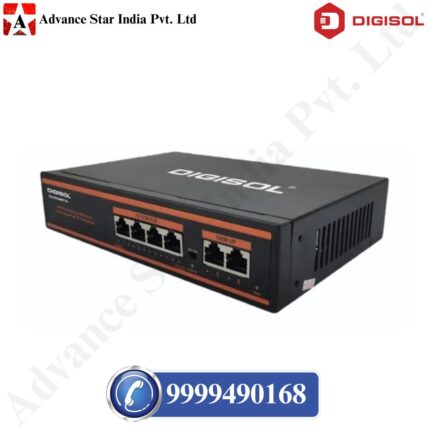

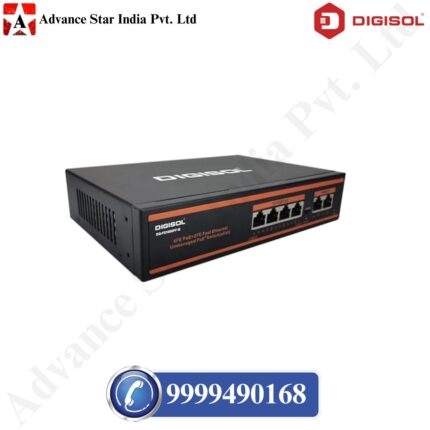

DIGISOL 4 Port PoE Fast Ethernet Unmanaged Switch with 2 Uplink Ports DG-FS1006PF-B

The DIGISOL DG-FS1006PF-B is a high-performance Fast Ethernet (10/100 Mbps) unmanaged switch that combines simplicity, reliability, and efficiency. It features 4 PoE-enabled Ethernet ports and 2 uplink ports, making it ideal for SOHO environments, IP surveillance, or small business networks where easy deployment and stable performance are crucial.

To begin with, all 4 PoE ports are IEEE 802.3af and IEEE 802.3at compliant, offering up to 30 watts per port with a total PoE power budget of 78 watts. Therefore, it can power devices such as IP cameras, VoIP phones, or wireless access points directly through existing Ethernet cables. As a result, there’s no need for additional power outlets or external adapters, greatly simplifying installation.

Moreover, the switch supports auto MDI/MDIX on all ports, which eliminates the need for crossover cables or uplink configuration. In addition, the 2 dedicated uplink ports ensure seamless connectivity to core routers or other switches, enhancing network scalability.

Notably, the switch uses store-and-forward switching technology, which verifies packet integrity before forwarding data, thereby ensuring reliable and error-free communication. With a 1.2 Gbps switching capacity, it can efficiently handle real-time data transmission between multiple connected devices.

Furthermore, the DG‑FS1006PF‑B is engineered with 6kV lightning protection, which provides a strong defense against power surges—especially valuable for outdoor or surveillance setups. Thanks to its fanless design, the switch operates silently, making it perfect for environments where noise must be minimized.

Additionally, individual PoE status LEDs per port allow users to easily monitor which devices are drawing power. Whether used for powering IP cameras in a security system or deploying Wi-Fi access points in an office, this switch offers flexibility and reliability without complex configuration.

Key Highlights:

• 4 × PoE ports (10/100 Mbps, IEEE 802.3af/at)

• 2 × 100 Mbps uplink ports

• 78W total PoE budget (up to 30W per port)

• Auto MDI/MDIX

• 1.2 Gbps switching capacity

• Store-and-forward switching

• 6kV lightning protection

• Fanless, compact, and silent design

In conclusion, the DIGISOL DG-FS1006PF-B is a dependable, energy-efficient, and user-friendly switch—ideal for expanding PoE-powered networks with ease and confidence.
