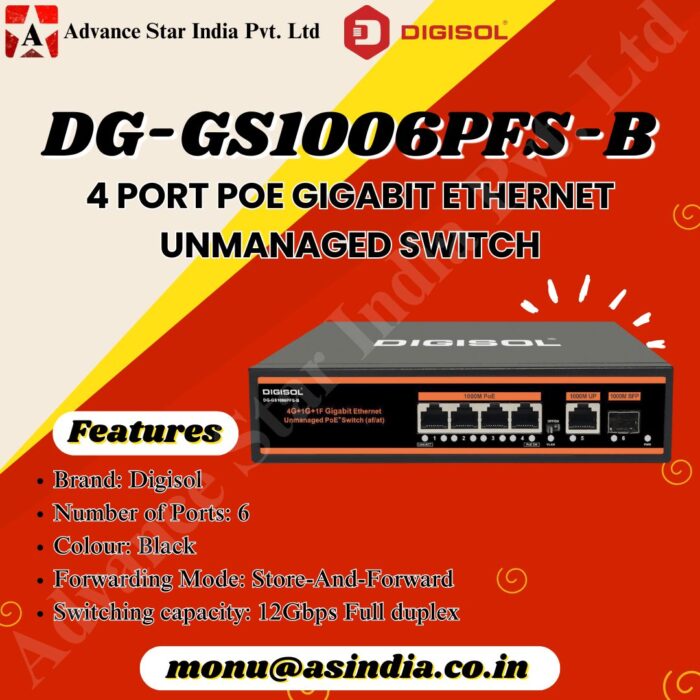

DIGISOL 4 Port PoE Gigabit Ethernet Unmanaged Switch with 2 1G Uplink Ports – DG-GS1006PFS-B

The DIGISOL DG-GS1006PFS-B is a high-performance Gigabit Ethernet PoE switch, specifically engineered for modern surveillance, office, and SOHO environments. It features 4×10/100/1000 Mbps PoE ports, along with 1×1000 Mbps Base-T uplink and 1×1000 Mbps SFP uplink port, providing unmatched flexibility and performance in compact network deployments.

To begin with, the switch is fully compliant with IEEE 802.3af and IEEE 802.3at standards. Consequently, it can deliver up to 30 watts per PoE port, with a total power budget of 78 watts. Therefore, devices such as IP cameras, wireless access points, and VoIP phones can be powered directly through the Ethernet cable—eliminating the need for separate power supplies or complex cabling setups.

Moreover, the switch comes equipped with auto MDI/MDIX functionality across all ports, which means users do not need to worry about crossover cables or specific uplink types. As a result, installation is plug-and-play, reducing setup time and technical complexity.

In addition, the two dedicated Gigabit uplink ports—one copper (RJ-45) and one fiber (SFP)—offer greater flexibility in connecting to core switches, routers, or long-distance fiber networks. This ensures reliable backbone connectivity and supports bandwidth-intensive applications.

Furthermore, the store-and-forward switching architecture ensures that data packets are checked for errors before being forwarded, enhancing data integrity across the network. With a 12 Gbps switching capacity, the switch delivers smooth and stable performance, even under high traffic loads.

For added convenience, the switch supports extended PoE transmission of up to 250 meters at 10 Mbps, making it ideal for distant device installations like outdoor cameras. Additionally, 6kV surge protection safeguards connected devices during voltage spikes or lightning events.

Thanks to its fanless design, the switch operates silently—making it suitable for noise-sensitive indoor spaces. Lastly, its compact and sturdy housing allows for desktop placement or easy wall mounting.

Key Features Recap:

• 4 × PoE-enabled Gigabit ports

• 1 × RJ-45 + 1 × SFP Gigabit uplink

• 78W PoE budget (30W max/port)

• 250m PoE range at 10 Mbps

• Store-and-forward switching, 12 Gbps capacity

• Surge/lightning protection

• Silent fanless design

• Auto MDI/MDIX, plug-and-play setup
