Description

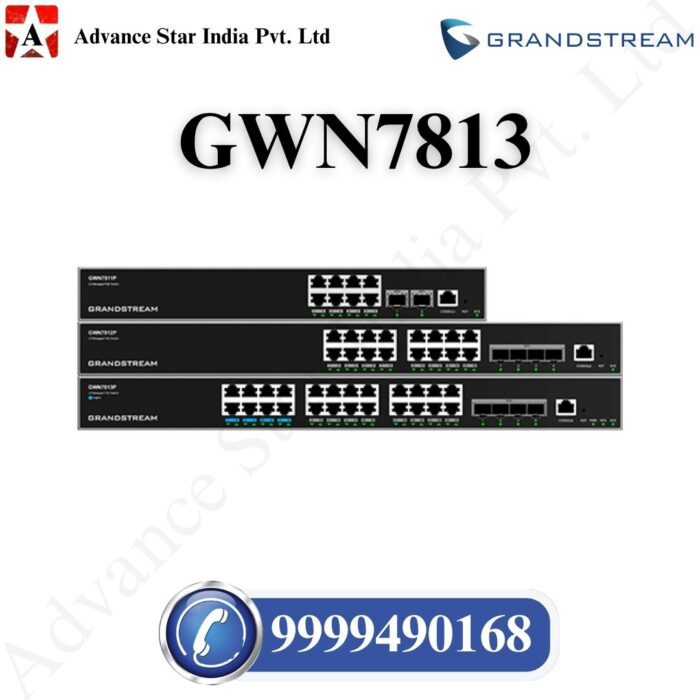

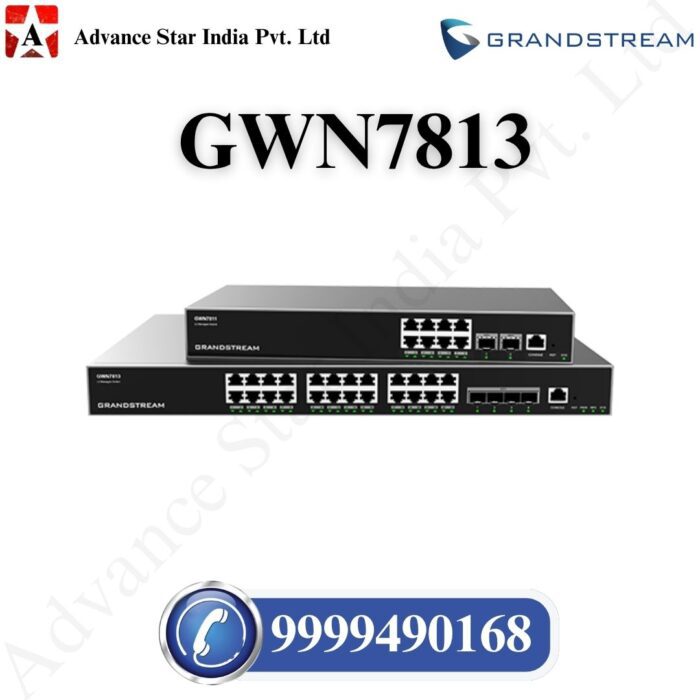

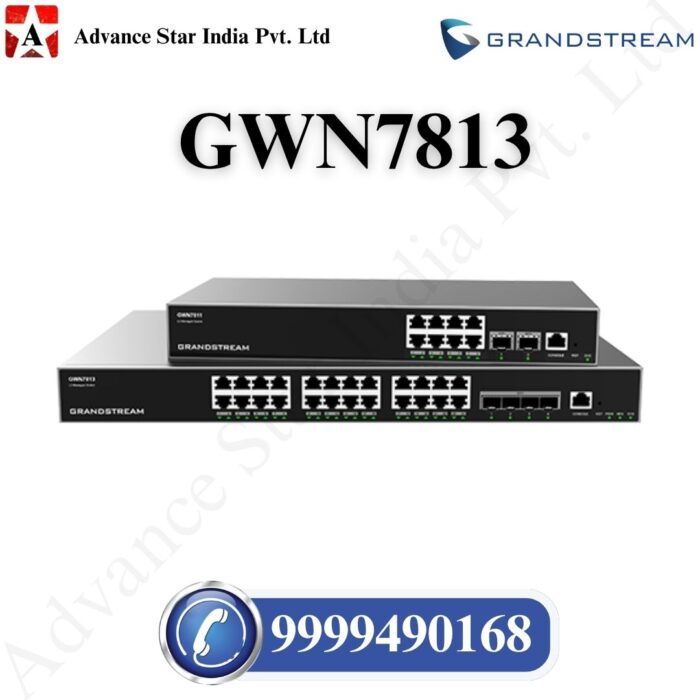

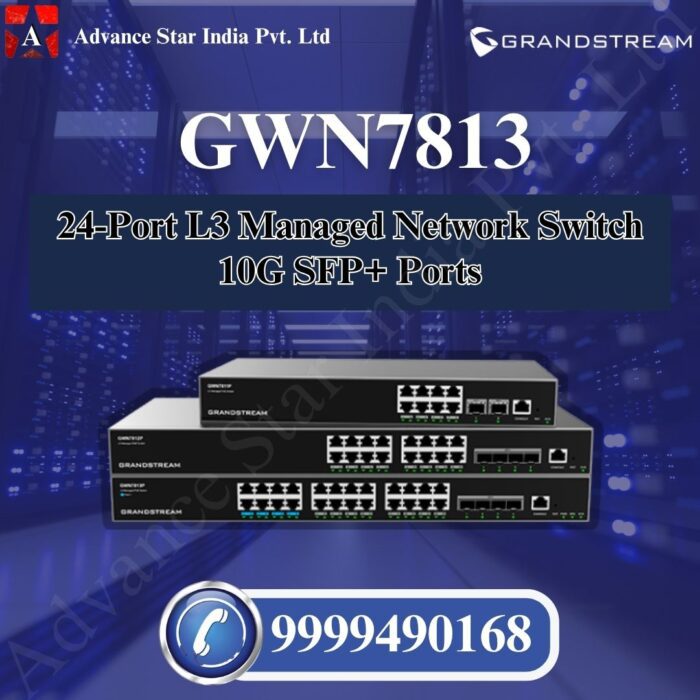

Grandstream GWN7813 24-Port Enterprise Layer 3 Managed Network Switch with 4x 10G SFP+ Uplink Ports

The Grandstream GWN7813 is a powerful, enterprise-grade Layer 2+ managed network switch, expertly crafted to provide small and medium-sized businesses with an advanced and secure solution for their networking needs. As a result, it serves as a robust and flexible platform for building high–performance wired networks. This sophisticated switch features 8 Gigabit Ethernet ports and 8 10-Gigabit SFP+ ports. Therefore, it offers a versatile combination of standard connectivity and ultra-high-speed fiber uplinks, making it ideal for core network links or connecting to high-bandwidth devices. Its formidable non-blocking throughput of 160Gbps and a switching capability of 320Gbps, along with a forwarding rate of 119.04Mpps, collectively ensure exceptionally smooth data transmission and minimal latency, even under the most demanding network loads.

Furthermore, the GWN7813 is meticulously designed with intelligent network management and robust security features as its core pillars. For instance, it fully supports advanced VLAN functionality, which is absolutely essential for sophisticated traffic segmentation. This consequently allows for the isolation of different departments or types of network traffic to significantly enhance both security and performance. In addition, its advanced Quality of Service (QoS) features automatically detect and intelligently prioritize latency-sensitive traffic such as VoIP, video conferencing, and other real-time applications, thereby guaranteeing a consistently high-quality user experience. The switch also integrates comprehensive security measures including ARP Inspection, IP Source Guard, DoS protection, and DHCP Snooping, all of which work in concert to defend against a wide array of potential network attacks.

On the other hand, managing the GWN7813 is remarkably flexible and user-friendly. For example, administrators can configure and monitor the switch through an intuitive local web user interface.

Key Features & Benefits of the GWN7813 24-Port Enterprise L3 Managed Network Switch with 4x 10G SFP+ Uplink Ports:

• 24x Gigabit Ethernet Ports
• 4x 10Gigabit SFP+ Ports
• 1x Console Port
• 1x Reset Pinhole
• Link Aggregation: 14
• Support for External Redundant Power Supply (RPS): 12V/5A(60W)
• Forwarding Mode: Store-and-forward
• Total non-blocking throughput: 64Gbps
• Switching Capability: 128Gbps
• Forwarding Rate: 95.232Mpps
• Packet Buffer: 12MB
• Unit dimensions (LxWxH): 440x300x44mm
• Unit weight: 2.94Kg
• Compliance: FCC, CE, RCM, IC, UKCA
• 3 Year Warranty
