Description

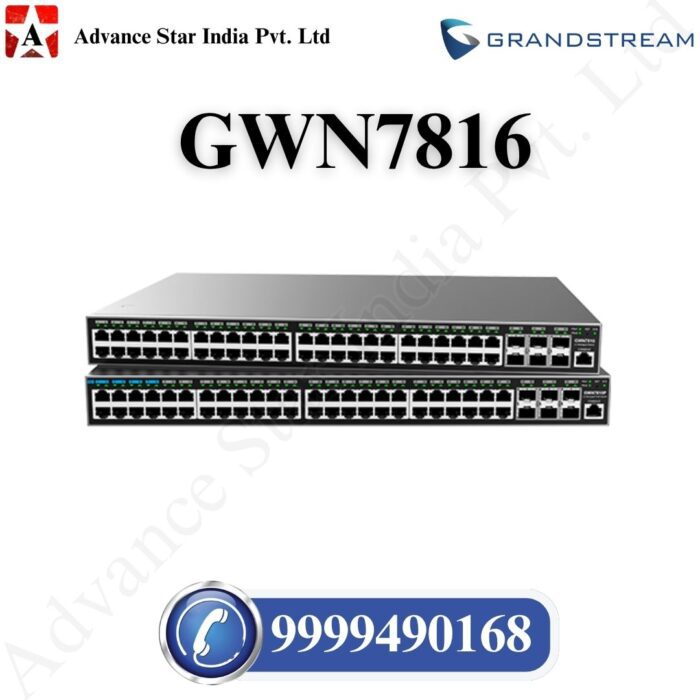

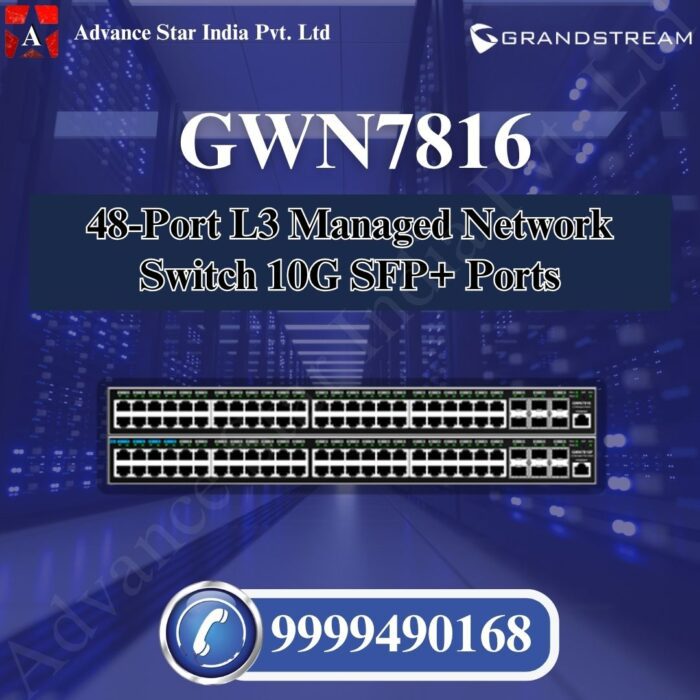

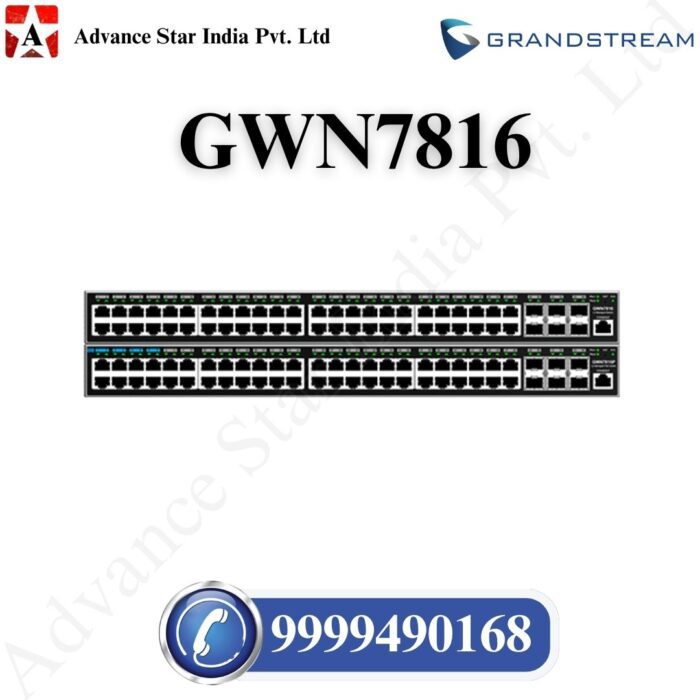

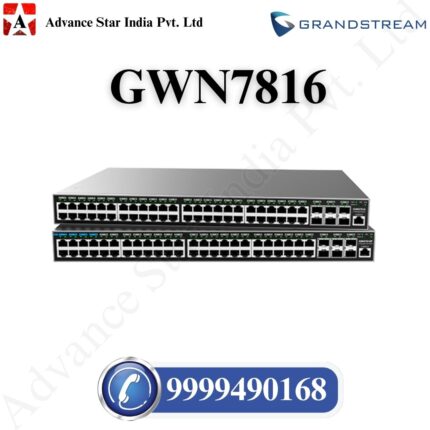

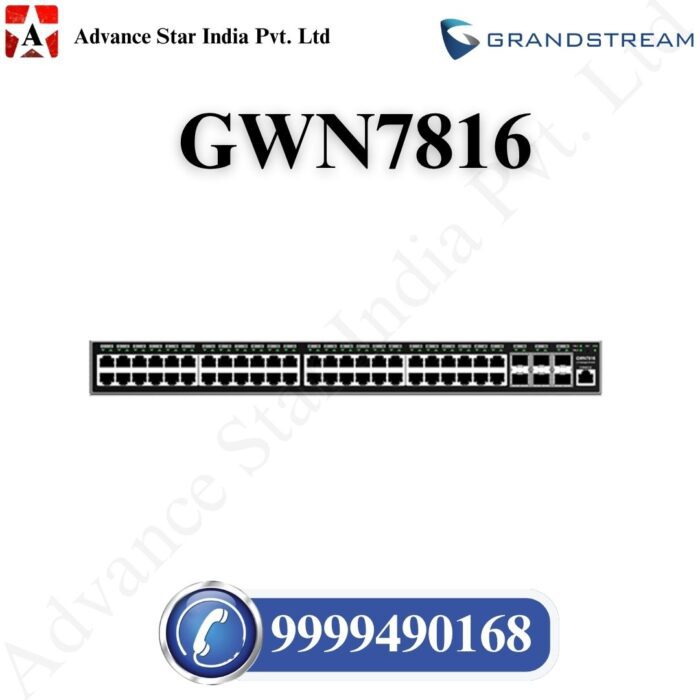

GRANDSTREAM GWN7816 Enterprise-Grade Layer 3 Managed Network Switch

The GWN7816 is a high-capacity, enterprise-grade Layer 3 managed network switch meticulously designed for medium to large-sized businesses. Essentially, this device serves as the core of a sophisticated network, enabling organizations to build scalable, secure, and high-performance infrastructures. It is, therefore, a crucial component for any enterprise requiring maximum capacity and control over its network.

Furthermore, a key highlight of the GWN7816 is its extensive port count and high-speed uplinks. With 48 Gigabit Ethernet ports, it provides ample connectivity for a large number of devices. In addition, it features six 10G SFP+ ports, which are vital for creating ultra-fast backbone connections to servers, storage devices, and other core network equipment. Consequently, this ensures a non-blocking switching capability and a massive switching capacity, thereby preventing data bottlenecks even during peak usage.

However, the GWN7816’s true strength lies in its advanced Layer 3 management features. By the same token, it supports advanced VLAN for flexible and sophisticated traffic segmentation, which enhances security and network efficiency. For instance, its robust Quality of Service (QoS) capabilities allow for the prioritization of critical data, such as voice and video traffic, ensuring a smooth and uninterrupted user experience.

Specification

• 48 Gigabit Ethernet Ports
• 6 SFP+ Ports (≤ 5m DAC cable support)
• Maximum amount of supported SFP modules: 6x SM-10G, 6x MM-10G, 3x RJ45-10G
• 1x Console Port
• Includes one 70W PSU by default, support for one Hot swap PSU (optional, sold separately)
• 1x Reset Pinhole
• Forwarding Mode: Store-and-forward
• Total non-blocking throughput 108Gbps
• Switching Capability 216Gbps
• Forwarding Rate 160.704Mpps
• Packet Buffer 16Mb
• Network Latency < 4μs
• 1x tri-color LED for device tracking and status indication
• 2x bi-color LEDs for per power supply PSU1/2
• 54x green-color LEDs for data transferring
• Cooling: 4 Fans
• Desktop, or Rack-Mount (rack-mounting kits included)
• Unit Dimensions (LxWxH): 440 x 300 x 44mm
• Unit Weight: 4.7Kg
• Compliance: FCC, CE, RCM, IC, UKCA
• 3 Year Warranty
