Description

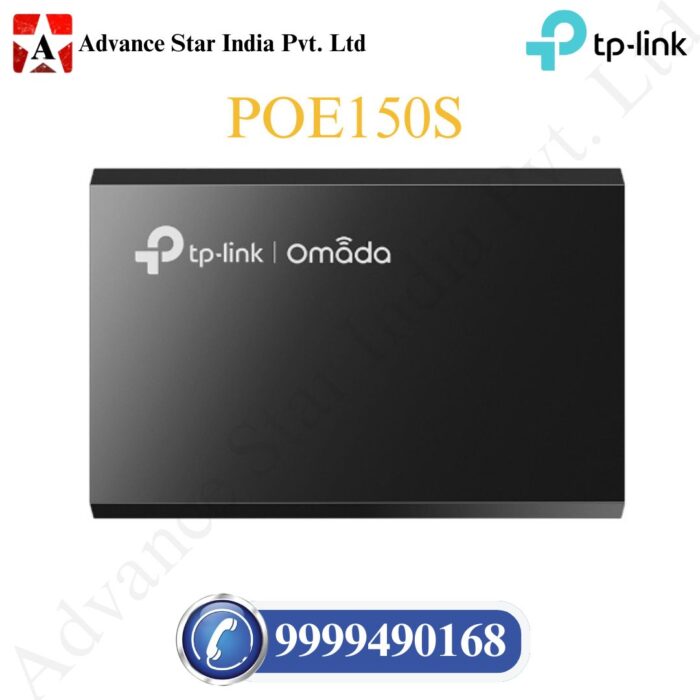

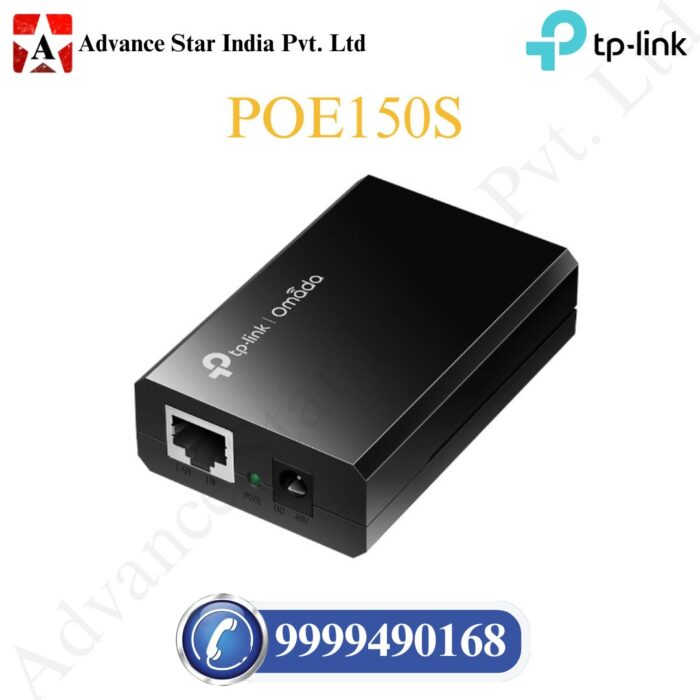

TL-POE150SOmada PoE Injector

The TP-Link TL-POE150S Omada PoE Injector is a highly popular and practical device that provides power and data simultaneously to PoE-compatible network devices over a single Ethernet cable. It’s designed to simplify installations and expand network reach in locations where power outlets are inconveniently located.

Here’s a detailed description of its features and capabilities:

TP-Link TL-POE150S Omada PoE Injector – Overview:

The TL-POE150S is an IEEE 802.3af compliant PoE injector. This means it adheres to a widely recognized standard for Power over Ethernet, ensuring compatibility with a broad range of PoE Powered Devices (PDs) such as IP cameras, VoIP phones, and wireless access points from various manufacturers. It acts as a middleman, taking data from a non-PoE network switch or router and combining it with electrical power, then sending both over a single Ethernet cable to the PoE-enabled device. This “active” PoE approach (as opposed to passive PoE) involves a handshake between the injector and the powered device to determine the necessary power requirements.

Key Features and Specifications:

• IEEE 802.3af Compliant: This is its most crucial feature. It fully complies with the IEEE 802.3af standard, which specifies up to 15.4 Watts (W) of power delivery over Ethernet. This ensures broad compatibility with standard PoE devices.
• Gigabit Ethernet Speed Support: Equipped with two 10/100/1000Mbps RJ45 ports.
• Auto-Sensing Algorithm (Auto-Determine Necessary Power): A significant advantage of 802.3af compliant injectors like the TL-POE150S is their intelligent power negotiation. The injector automatically detects whether the connected device is PoE-compatible and determines the exact power requirements, preventing damage to non-PoE devices.
• Plug-and-Play Installation: The TL-POE150S is an unmanaged device, meaning it requires no complex configuration or software installation. Simply connect the cables, and it starts working immediately, making deployment quick and hassle-free.
