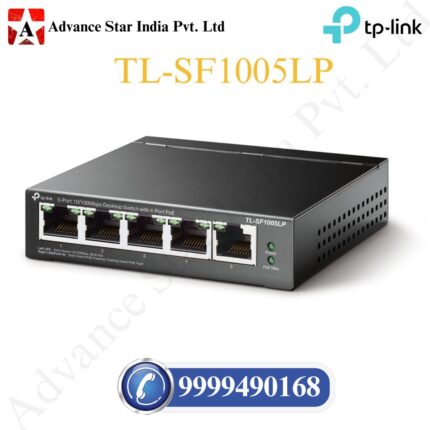

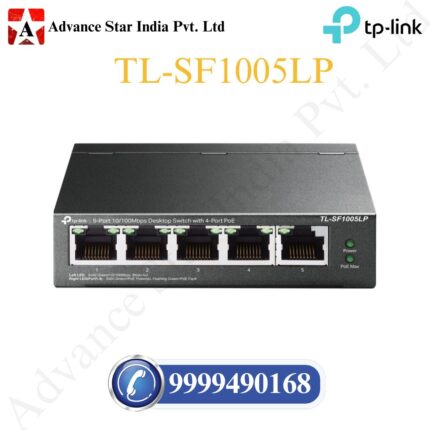

TL-SF1005LP 5-Port 10/100Mbps Desktop Switch with 4-Port PoE

The TP-Link TL-SF1005LP is a 5-Port 10/100Mbps Desktop Switch with 4-Port PoE, designed to simplify network expansion, particularly for small offices, dormitories, and home surveillance systems.

Here’s a breakdown of its key features:

• • 5 x 10/100Mbps RJ45 Ports: It provides five standard Ethernet ports for connecting various network devices. Four of these ports are PoE-enabled.
  • 4-Port PoE (Power over Ethernet): The switch supports the 802.3af PoE standard on ports 1-4. This means it can transmit both data and power over a single Ethernet cable to compatible devices, such as IP cameras, IP phones, and wireless access points.
  • 41W PoE Power Budget: The total power budget for the four PoE ports is 41 Watts, with each individual PoE port supporting up to 15.4 Watts. This allows for flexible deployment of multiple PoE devices.
  • Plug and Play: The TL-SF1005LP is an unmanaged switch, meaning it requires no configuration. Simply plug in your devices, and it’s ready to use.
  • Extend Mode (Up to 250m): For IP camera deployments in larger areas, the “Extend Mode” allows for PoE transmission distances of up to 250 meters. Note: In extend mode, the speed of the ports will downgrade to 10 Mbps.
  • Priority Mode: This feature ensures the quality of sensitive applications like video monitoring. When enabled, ports 1 and 2 are given higher priority for power supply. This intelligent power management helps protect the system from overload by cutting power to lower-priority ports if the total power consumption exceeds 41W.
  • Intelligent Power Management: The switch automatically detects and provides the necessary power for your PoE devices while also protecting both PoE and non-PoE equipment from potential damage due to power overload.
