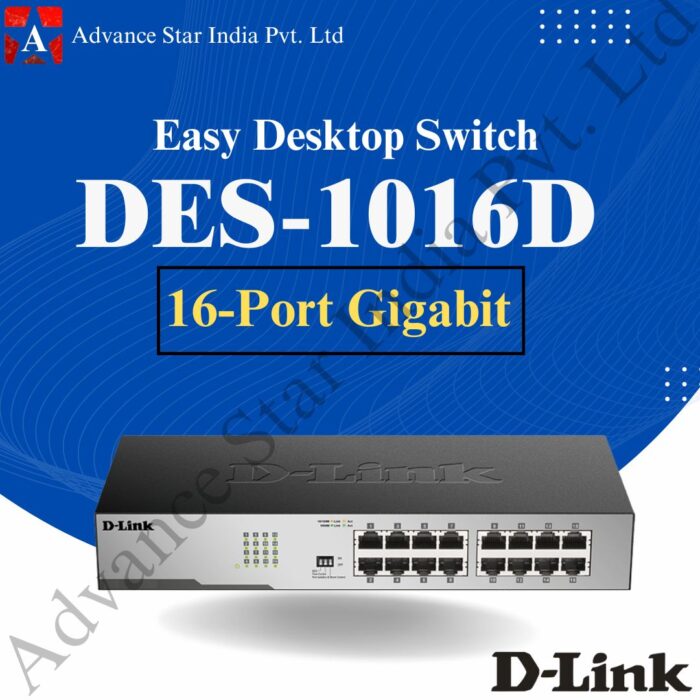

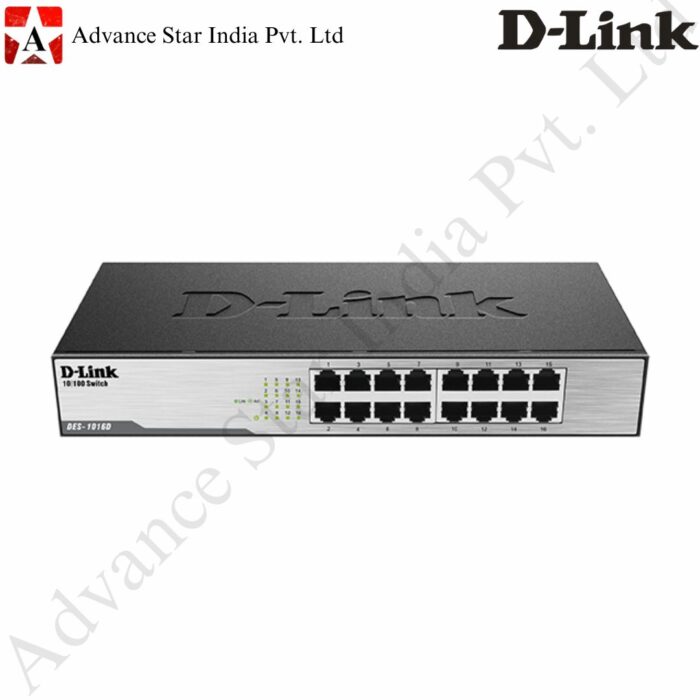

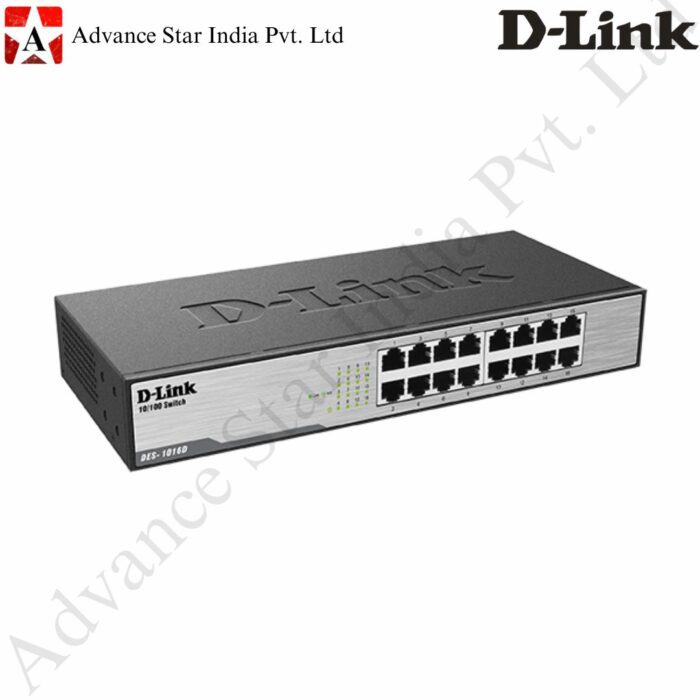

DES-1016D 16-Port Unmanaged Switch

Call For Best Price

Technical Details

• Auto MDI/MDIX crossover for all ports
• Secure store-and-forward switching scheme
• Supports 9 216 byte jumbo frames
• Back pressure at half-duplex operation
• Wire-speed reception and transmission
• Store and-Forward switching method
• Auto-negotiation for each port
SKU: PG9EHX Category: Brand:
Compare

Description

DES-1016D 16-Port 10/100 Mbps Unmanaged Switch

Description

The DES-1016D Unmanaged Switch is economical, plug-and-play networking switch solution for SOHO and small and medium businesses wanting to benefit from the increased bandwidth of Fast Ethernet. It provides 16 10/100 Mbps ports that enable you to easily expand your network and provide a quick way to upgrade your network to fast connectivity DES-1016D 16-Port Unmanaged Switch.

Fast Networking Made Easy

Indeed, with data transfer speeds of up to 200 Mbps at full duplex, this switch is ideal for quick file transfers, online gaming, and smooth streaming media. Furthermore, it features easy-to-access Ethernet ports with LED indicators per port to easily distinguish link status. Moreover, Auto MDI/MDIX crossover makes connection a cinch; specifically, just plug in your cables and you’re ready to go.

Conserve Energy

The DES-1016D implements 802.3az Energy Efficient Ethernet, which saves energy and reduces heat automatically without sacrificing performance or functionality. For example, the switch can detect when a connected computer is shut down or when there is no Ethernet traffic, and will put the port in standby mode, thereby saving a substantial amount of power. In addition, the switch optimizes power usage for each port for the length of cable connected to it, using only as much power as is required. Consequently, both of these features work together to help you save power automatically.

Reliable Plug and Play Installation

The DES-1016D is a Plug-and-Play device that requires no configuration, so setup is simple and hassle-free. As a result, you can easily connect multiple computers, share files, music, and video across your home or small office network, or even create a multiplayer gaming environment. Additionally, 802.3x flow control on each port minimizes dropped packets when the port’s receiving buffer is full, thus giving you a more reliable connection for all of your connected devices.

General features

Device Interfaces
• 16 10/100 Mbps LAN ports
Switching Capacity
• 3.2 Gbps switching fabric
Transmission Method
• Store-and-forward
MAC Address Table Size
• 8 000
Packet Filtering/Forwarding Rates
• Ethernet: 14 880 pps per port
• Fast Ethernet: 148 800 pps per port
RAM Buffer
• 256 KB per device
Physical Parameters
LED Indicators
• Per port: Link/Activity/Speed
• Per device: Power
Media Interface Exchange
• Auto MDI/MDIX adjustment for all ports
Dimensions
• 282.2 x 151 x 44.5 mm
Weight
• 1.06 kg
