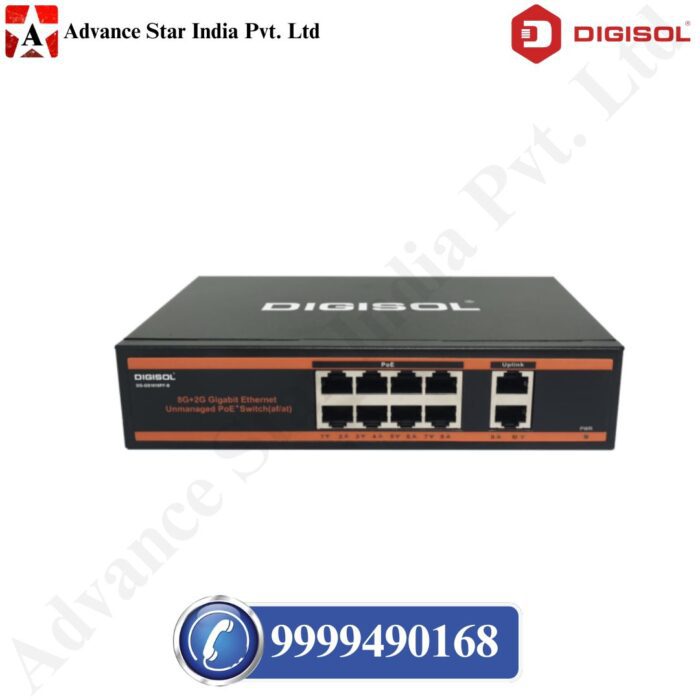

DIGISOL 8 Port PoE Gigabit Unmanaged Switch with 2 Uplink Ports – DG-GS1010PF-B

DIGISOL DG-GS1010PF-B Switch offers 8×10/100/1000Mbps Ethernet ports with Power over Ethernet support. These PoE ports are IEEE 802.3af and IEEE802.3 at compliant and can supply up to a Max. of30 watt per port and a total PoE power of 150Watt. The existing Ethernet cables can be used to power up PoE compliant network devices. This eliminates the need of an external power source and power cabling for such devices. The switch provides flexibility to users for connecting a PoE or non PoE device. The PoE devices connected to switch can be easily identified by the separate PoE LED status indicators for each port.

Firstly, all eight PoE ports comply with IEEE 802.3af (15.4 W) and IEEE 802.3at (30 W) standards, delivering up to 30 W per port with a total power budget of 150 W. Consequently, you can power IP cameras, wireless access points, VoIP phones, and similar devices directly over existing Ethernet cables—eliminating the need for external adapters and separate power wiring. As a result, deployment is simpler and clutter-free.

Moreover, every port supports auto MDI/MDIX, so there’s no need to worry about crossover cables or special uplink configurations. In addition, the two dedicated Gigabit uplink ports (Base-T) ensure seamless connectivity to core switches or routers, supporting backbone integration and bandwidth-intensive applications.

Importantly, this switch employs store-and-forward packet-switching, which checks each packet for integrity before forwarding. With a hefty 20 Gbps switching capacity (full-duplex), the DG‑GS1010PF‑B offers consistent, high-speed throughput across all devices—up to ~2.5 Gbps inbound + outbound traffic per port.

Key Features:

• 8 × Gigabit PoE ports (10/100/1000 Mbps, IEEE 802.3af/at compliant)

• 2 × Gigabit uplink ports (RJ‑45)

• 150 W total PoE budget (30 W per port)

• Auto MDI/MDIX on all ports

• Store-and-forward switching; 20 Gbps full-duplex capacity

• Supports ~4.166 Mpps forwarding rate per port

• 6 kV lightning/surge protection

• Silent, fanless, built-in AC power supply

• Compact desktop or wall-mount design

• Extended PoE range: up to 250 m at 10 Mbps

• PoE activity LEDs for each port
