Description

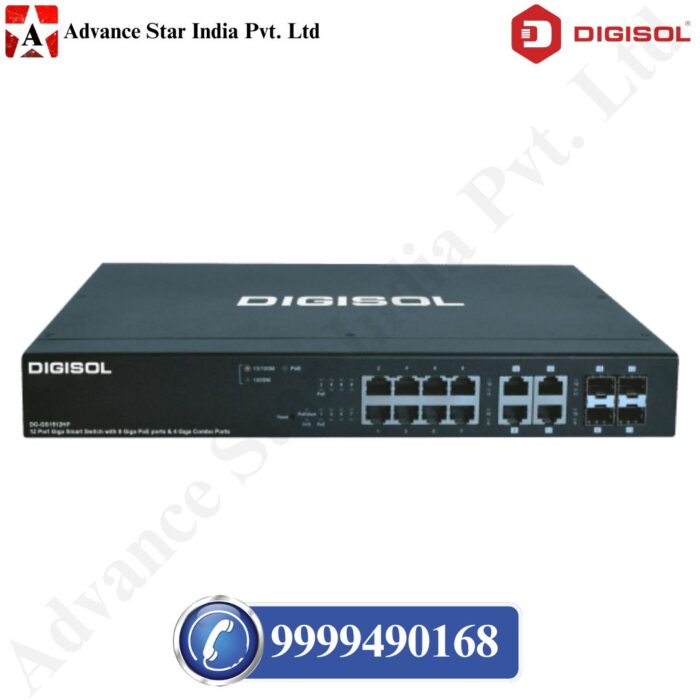

DG-GS1512HP – Digisol 8 Port Web Managed Gigabit Ethernet PoE Switch + 4 Combo Ports

DIGISOL DG-GS1512HP uses web-managed switching technology that enhances the functionality of this product. Web managed switching technology falls between unmanaged and managed switches. They are available at a much lower price than fully managed switches and allow basic configuration settings like VLAN, duplex and port bandwidth. That makes this device a smart or intelligent network manageable switch. This switch is optimal for high-performance network environments that require high port density. The DIGISOL DG-GS1512HP provides a total of 8 ports that supports 8 Gb Ethernet PoE ports and 4 combos 4 Gb Ethernet uplink ports. Port mirroring, port trunking and VLAN ports are also supported on these ports. Here port mirroring is the method of copying network packets from one port and sending them to another port of a monitoring computer. Port trunking allows one to combine multiple LAN interfaces for increased bandwidth for multiple clients.

First, the 8 PoE ports fully support IEEE 802.3af/at standards, providing up to 30 W per port with a total PoE budget of 140 W.

Moreover, equipped with a 24 Gbps switching capacity and wire‑speed forwarding, the switch ensures responsive performance for bandwidth-intensive tasks.

Additionally, the DG‑GS1512HP incorporates smart Layer‑2 protocol features such as STP/RSTP/MSTP, LLDP, IGMP Snooping, Link Aggregation (LACP), VLANs, and Port Mirroring/Trunking. These features deliver enhanced network redundancy, traffic segmentation, and quality of service for voice and video applications.

Also noteworthy, built-in 6 kV surge protection safeguards devices from voltage spikes. The unit’s fanless design ensures silent operation, supported by an internal power supply and compact metal casing ideal for desktop, rack, or wall mounting. Furthermore, individual port LEDs provide clear status visibility.

Furthermore, its web-based management interface supports intuitive configuration via HTTP/HTTPS, with SNMP v1/2/3, Telnet/SSH, and role-based user access controls. This makes it accessible for both local and remote administration.

Key Highlights:

• 8 × Gigabit PoE ports (IEEE 802.3af/at), 140 W power budget

• 4 × combo uplink ports (RJ45 + SFP) for high-speed backbone

• 24 Gbps switching capacity; wire-speed performance

• Jumbo frames (9K), 8K MAC entries, 4.1 Mbit buffer

• Layer‑2 features: STP/RSTP/MSTP, LLDP, IGMP Snooping, LACP, VLANs, QoS

• Enhanced security: Port Security, ACL, storm control

• 6 kV lightning protection, silent fanless cooling

• Web GUI, SNMP, Telnet/SSH management

• Rack-, wall-, or desktop-mountable metal chassis

In summary, the DIGISOL DG‑GS1512HP offers a powerful yet manageable networking solution that combines Gigabit PoE delivery with enterprise-grade Layer-2 features, safety protections, and flexible installation—making it ideal for environments demanding reliability, efficiency, and ease of use.
