Description

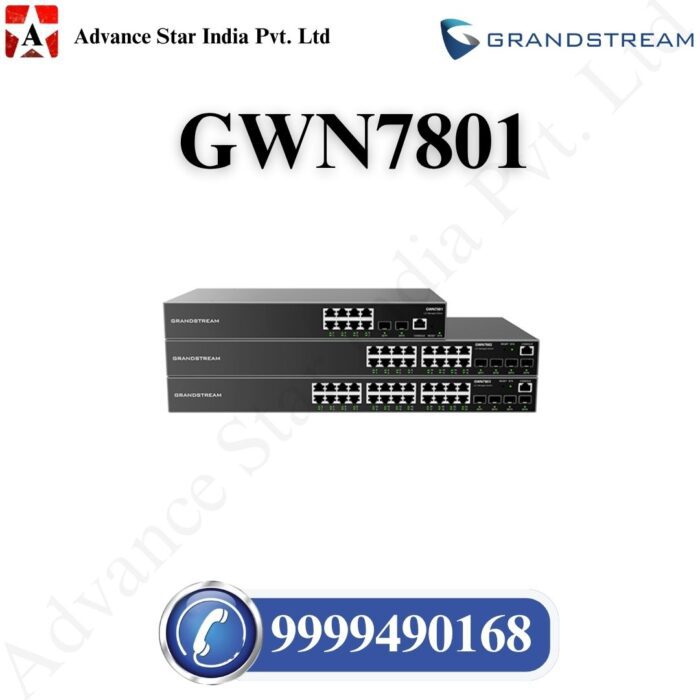

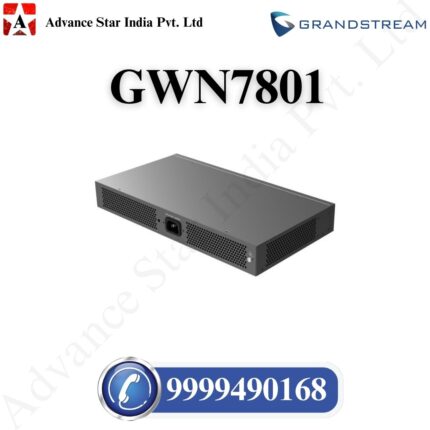

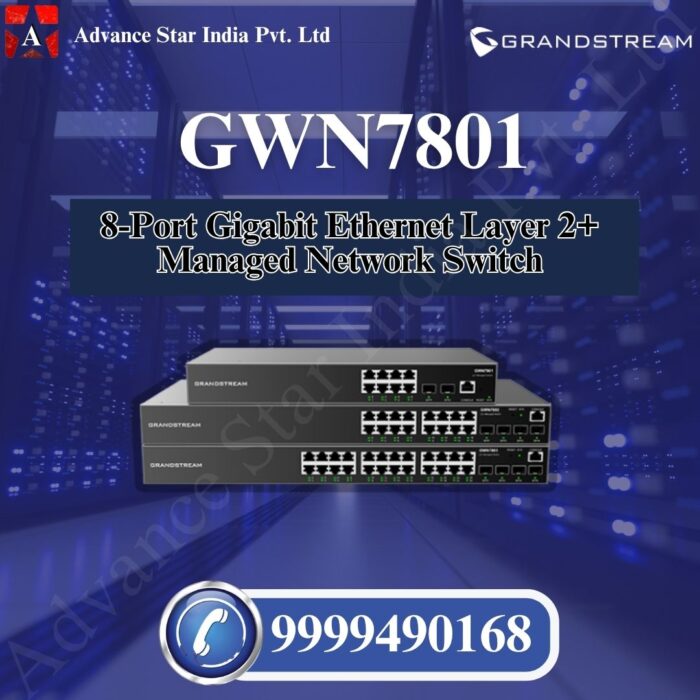

Grandstream GWN7801 | 8-Port Gigabit Ethernet Layer 2+ Managed Network Switch

The Grandstream GWN7801 is an enterprise-grade Layer 2+ managed network switch designed to provide small and medium-sized businesses with a robust, scalable, and secure networking solution. As a result, it is a powerful and flexible platform for building high-performance wired networks. Specifically, the switch features 8 Gigabit Ethernet ports and 2 Gigabit SFP ports, offering versatility for connecting a variety of devices and providing high-speed fiber uplinks. In fact, its non-blocking switching capability of 20Gbps and forwarding rate of 14.88Mpps ensure smooth data transmission and minimal latency, even under heavy network load.

Furthermore, the GWN7801 is built for intelligent network management and security. For example, it supports advanced VLAN functionality for sophisticated traffic segmentation, which is crucial for isolating different departments or types of traffic to enhance security and performance. In addition, its advanced Quality of Service (QoS) features automatically detect and prioritize latency-sensitive traffic such as VoIP, video conferencing, and other real-time applications, thereby guaranteeing a high-quality user experience. The switch also includes comprehensive security measures like ARP Inspection, IP Source Guard, DoS protection, and DHCP Snooping to defend against a wide range of potential network attacks.

On the other hand, management of the GWN7801 is flexible and user-friendly. For instance, administrators can configure and monitor the switch through an intuitive local web user interface.

Key Features & Benefits of the Grandstream GWN7801 Enterprise 8-Port Gigabit L2+ Managed non-PoE Switch:

• 8x Gigabit Ethernet Ports
• 2x Gigabit SFP Ports
• 1x Console Port
• Total non-blocking throughput 10Gbps
• Switching Capability 20Gbps
• Forwarding Rate 14.88M packets per second
• Packet Buffer 4.1MB
• Forwarding Mode: store-and-forward
• Integrated Power Supply 30W
• Multicast: IGMP Snooping, MLD Snooping, MVR
• DHCP server, DHCP relay, Option 82, 60,160 and 43
• 1x tri-color LED for device tracking and status indication,
• 10x green LEDs for data ports
• Fanless operation
• Desktop/Wall-Mount installation
• Operating temperature 0°Cto 45°C, humidity 10-90% RH (Non-condensing)
• Storage temperature -10°C to 60°C, humidity: 5% to 95% (Non-condensing)
• 3 Year Warranty
