Description

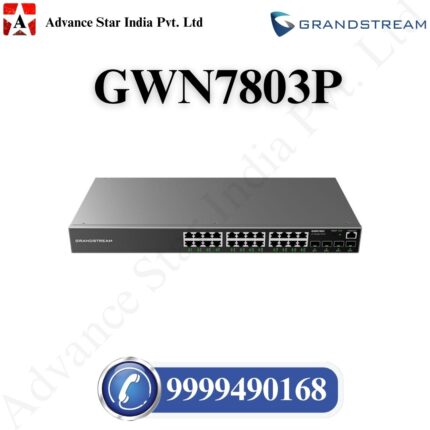

The Grandstream GWN7803 is a highly capable and secure Layer 2+ managed network switch, engineered to meet the demanding requirements of small and medium-sized businesses. As a result, it serves as a powerful and flexible foundation for building high-performance wired networks. The switch features 24 Gigabit Ethernet ports and 4 Gigabit SFP ports, offering extensive connectivity options for a diverse range of devices and providing high-speed fiber uplinks. In fact, its non-blocking switching capability of 56Gbps and forwarding rate of 41.67Mpps guarantee smooth data transmission and minimal latency, even when the network is under significant load.

Furthermore, the GWN7803 is built with intelligent network management and security as a primary focus. For example, it supports advanced VLAN functionality for sophisticated traffic segmentation, which is critical for isolating different departments or types of traffic to enhance security and improve overall network performance.

On the other hand, the management of the GWN7803 is both flexible and easy to use. For instance, administrators can configure and monitor the switch through an intuitive local web user interface. Conversely, for larger and more complex deployments, the switch is fully integrated with Grandstream’s GWN.

Key Features & Benefits of the Grandstream GWN7803P Enterprise 24-Port Gigabit L2+ Managed PoE Switch:

• 24x Gigabit Ethernet Ports with PoE/PoE+ support (IEEE 802.3af/at), 4x Gigabit SFP Ports
• Smart power control to support dynamic PoE/PoE+ power allocation per port
• Max. PoE Power Budget 360W
• Max Output Power per PoE Port 30W
• Total non-blocking throughput 28Gbps
• Switching Capability 56Gbps
• Forwarding Rate 41.66M packets per second
• Packet Buffer 4.1MB
• Forwarding Mode: store-and-forward
• Integrated Power Supply 400W
• Multicast: IGMP Snooping, MLD Snooping, MVR
• DHCP server, DHCP relay, Option 82, 60,160 and 43
• 1x Console Port
• 28x green LEDs for data ports
• 24x yellow-color LEDs for PoE ports
• 3 Year Warranty
