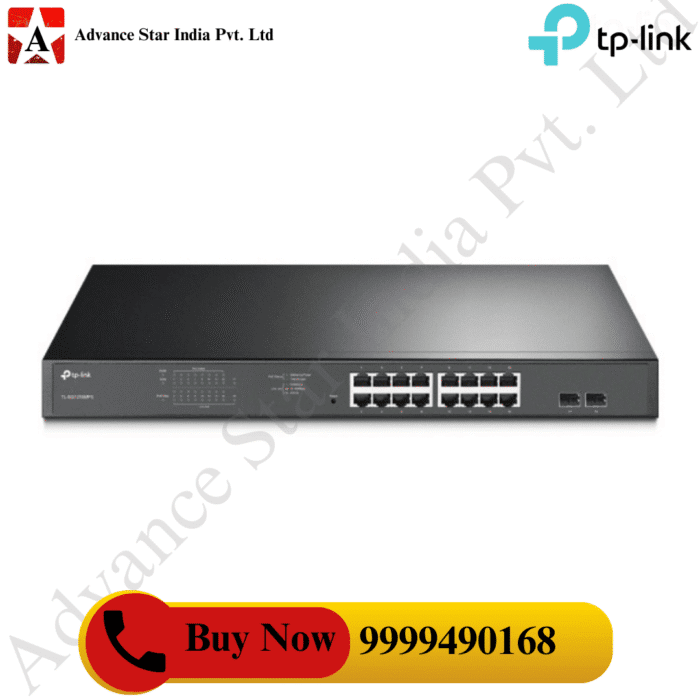

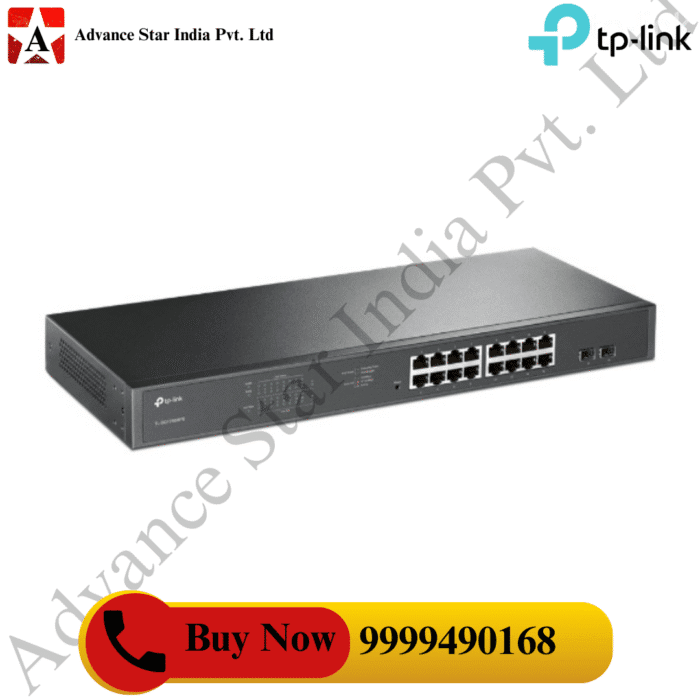

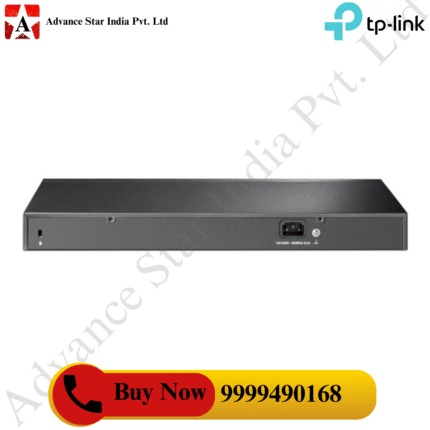

TL-SG1218MPE 16-Port Gigabit Easy Smart PoE+ Switch with 2 SFP Slots
Call For Best Price
| PERFORMANCE | |
|---|---|
| Switching Capacity | 36 Gbps |
| Packet Forwarding Rate | 23.8 Mbps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
- Description
- Size Guide
- Reviews (0)
Description
TL-SG1218MPE 16-Port Gigabit Easy Smart PoE+ Switch with 2 SFP Slots
This particular switch features 16 10/100/1000Mbps RJ45 PoE+ Ports, along with 2 SFP Slots. Crucially, its PoE power budget is up to 192W, making it an ideal choice for small to medium business surveillance systems TL-SG1218MPE 16-Port Gigabit Easy Smart PoE+ Switch with 2 SFP Slots.
Key Features
Regarding performance, Port Priority is able to guarantee the quality of sensitive applications such as video monitoring. Furthermore, intelligent power management can protect the switch from overload. In addition, QoS is included for a smooth internet-surfing experience, while IGMP Snooping is capable of optimizing traffic for IPTV.
Detailed Product Overview
To elaborate on its configuration, this switch offers a flexible full Gigabit 18-Port PoE setup: specifically, 16x PoE+ (802.3at/af) 10/100/1000 Mbps RJ45 ports provide up to 30W per port, and a total PoE power budget of 250W. Moreover, these are accompanied by 2x Gigabit Non-PoE Ports and 2 Combo SFP Slots for high-speed connections.
Management and Security
For ease of use, smart management is facilitated by a simple-to-use web-based management interface and smart configuration utility, thus making network setup and monitoring straightforward. Furthermore, network segmentation is improved through abundant VLAN features, consequently enhancing network security via traffic segmentation.
Power Management and Reliability
Notably, PoE Auto Recovery is a key feature: the switch automatically detects and reboots dropped or unresponsive PoE-powered devices, thereby eliminating the need for manual monitoring or resetting.
Warranty and Support
Finally, a 3-year warranty backs this product, coupled with free technical support from 6 am to 6 pm PST, Monday to Fridays. This ensures you can work with confidence
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p |
| Interface | 16 10/100/1000 Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) 2 Gigabit SFP Ports |
| Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) 1000BASE-X MMF, SMF |
| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |
| Power Supply | 100-240V AC, 50/60 Hz |
| PoE+ Ports(RJ45) | Standard: 802.3at/802.3af compliant PoE+ Ports: 16 Ports Power Supply: 192W |
| Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 18.73 W (220/50Hz. no PD connected) 217.22 W (220/50Hz. with 192W PD connected) |
| Max Heat Dissipation | 63.89 BTU/h (no PD connected) 741.15 BTU/h (with 192W PD connected) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 36 Gbps |
| Packet Forwarding Rate | 23.8 Mbps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1 Mbit |
| Jumbo Frame | 9 KB |
